Wilwood/JFZ brake pads for 4 piston calipers (specifically for Drag Racing)
Wilwood/JFZ brake pads for 4 piston calipers (specifically for Drag Racing)
Brake Pads for Wilwood/JFZ 4 piston calipers for use in Drag Racing applications. Choose in the drop down menu pads for P/N B3325 (semi metallic) or P/N B3326 (metallic). Specifications are as follows:
Part Number: B3325
Designed Specifically For Drag Racing
Wilwood Four Piston Caliper
Utilizing cotter pin to retain brake pads
JFZ Four Piston Caliper
No longer in business
Used cotter pin to retain brake pads

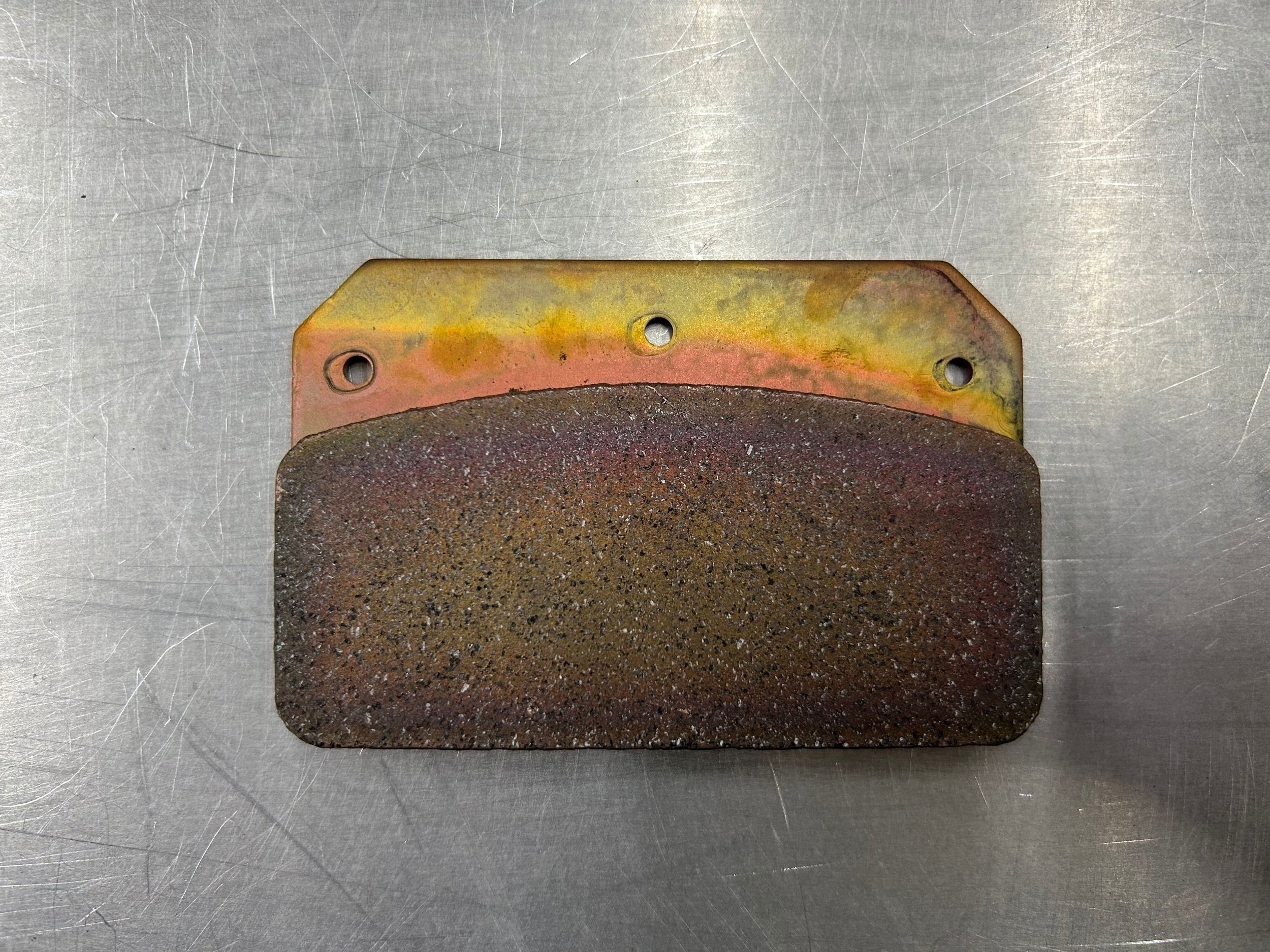

DTC-30 Semi Metallic Brake Pad
• Provides the best starting-line cold holding power
• Only material suitable for use in front steel applications
• Rear application in vehicles going 150 MPH or less in the 1/4 mile
Material Suitable For Front or Rear Applications
Specifications
New – .480″
Discard – .200″
Part Number: B3326
Designed Specifically For Drag Racing
Wilwood Four Piston Caliper
Utilizing cotter pin to retain brake pads
JFZ Four Piston Caliper
No longer in business
Used cotter pin to retain brake pads

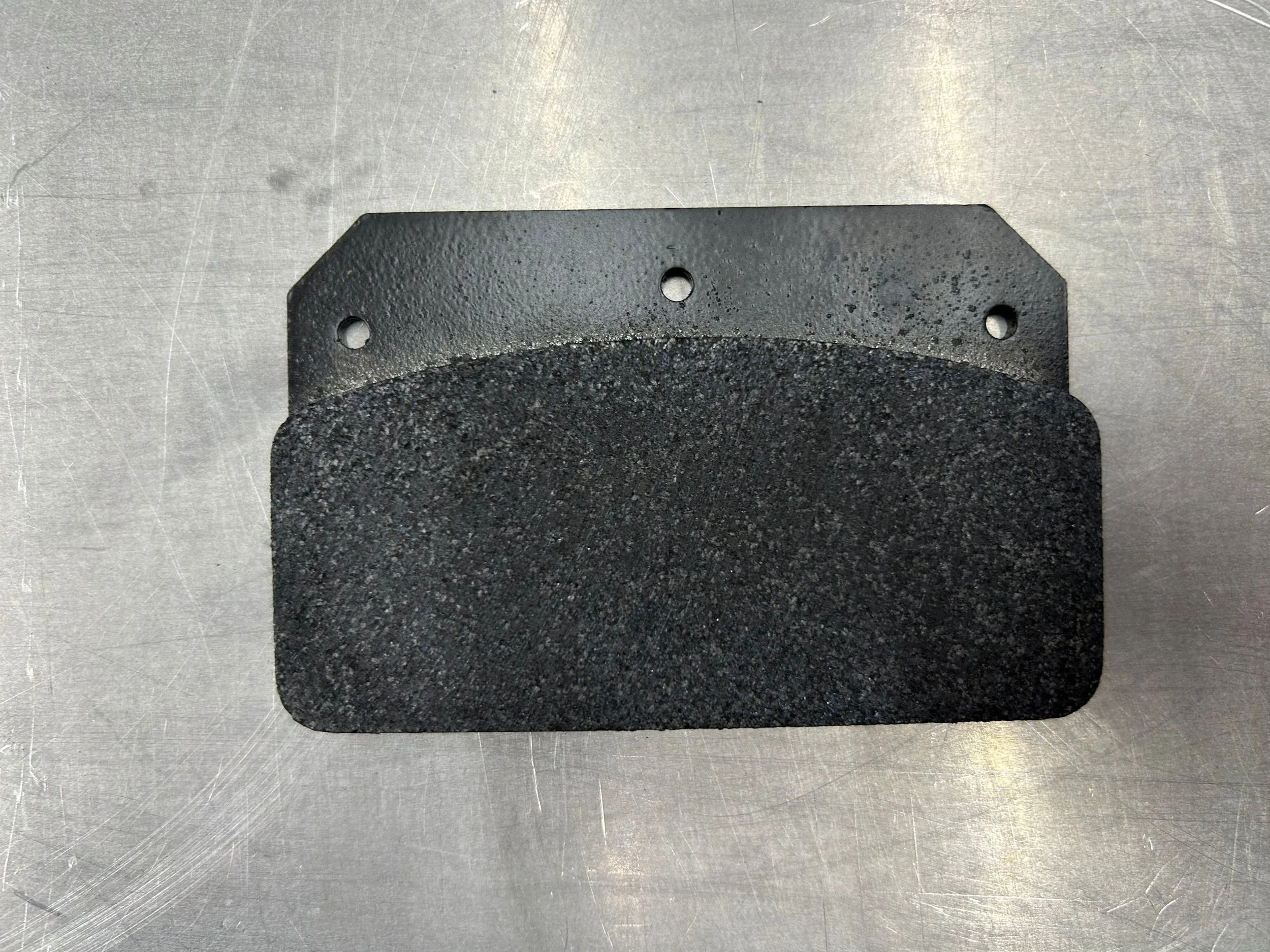

DRM-35 Metallic Brake Pad
• Provides high resistance to brake fade
• Recommended for vehicles going over 150 MPH in the 1/4 mile
• Maintains decent starting-line cold holding capabilities
• May leave pad residue on rotors when not using parachute
• While common, it’s recommended to remove when installing new pads
Material Not Suitable For Front Applications
Specifications
New – .480″
Discard – .200″
